Shock Cord Foot Gounder
grade grade grade grade star_half 0 Reviews Desco Europe / SCS Share this page Write a review
Description

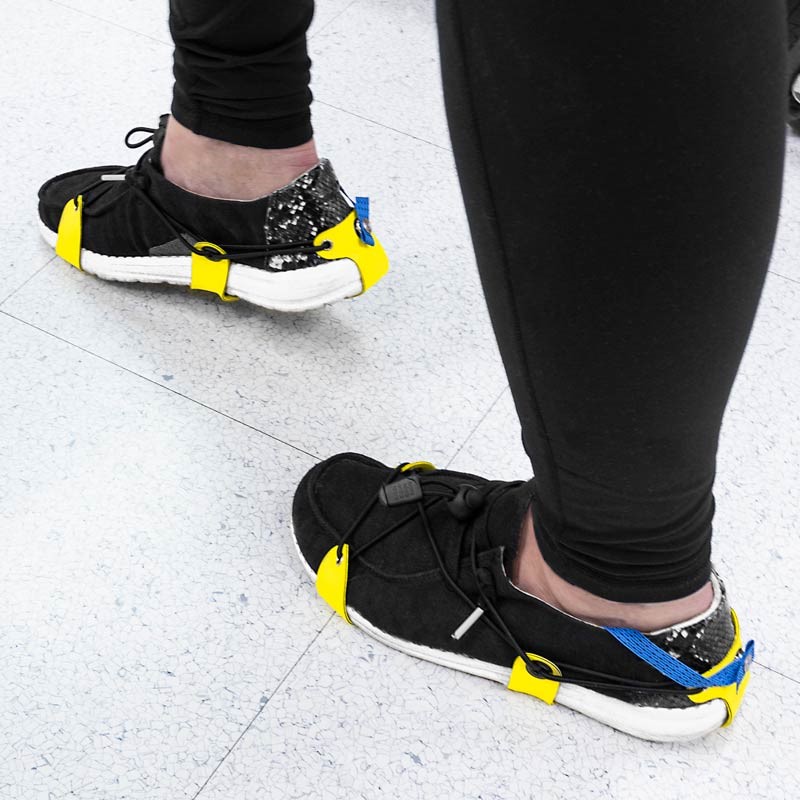

- Shock Cord Full Coverage Foot Grounder
Converts non-ESD footwear to footwear that will provide a path-to-ground and will not generate a charge.1 - Elastic Shock Cord Attachment System2
Stretches over shoes for a comfortable fit with most styles and sizes of shoes. - Replaceable Conductive 8-Strand Nylon Polyester Grounding Tab
Improves hygiene and provides reliable connection with operator’s sweat-layer. - Walking Voltage Generation <60 Volts
Meets the ANSI/ESD S20.20 requirement for use as an ESD footwear component in personnel grounding flooring/footwear system. - Tab to Cup Resistance: 1 x 106 to < 1 x 107 ohms at 100 volts
Meets the ANSI/ESD S20.20 required limit tested per ESD SP9.2 & ESD TR53 as suitable ESD footwear component in personnel grounding flooring/footwear system. - Contact Points on Ball and Heel Area
Remains in contact with the floor (path-to-ground) through a normal walking motion and in situations where both heels may be off the ground. - Non-Marring Material
Will not leave marks on floors (or operator’s shoes); reducing maintenance costs of touching up on floors. - UL Listed
Independently reviewed for adequacy of the product’s design
- Foot grounders must be used with an ESD floor (<1 x 109 ohms) to create a path-to-ground and minimize charge generation.
- U.S. Patent 2022/0408535 A1
