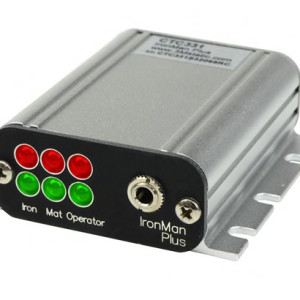

Iron Man Plus Workstation Monitor

Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of an operator and conductive or dissipative worksurface and meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
Electrical Overstress (EOS) Detection
Alarms if overvoltage (±5V or less) from a tool such as a soldering iron or electric screwdriver is applied to a circuit board under assembly
Operator Body Voltage Detection
Alarms if the operator generates or comes in contact with a voltage that would be dangerous to an ESD susceptible item
Digital Signal Processing Technology
Applies a low test voltage to the operator (0.40V) for the handling of sensitive components
Miniature Size (0.85” H x 2.4” W x 2.6” L)
Uses minimal workspace and includes mounting tabs for installation underneath table tops
Use with Dual-Wire Wrist Straps
See Dual-Wire Wrist Straps
