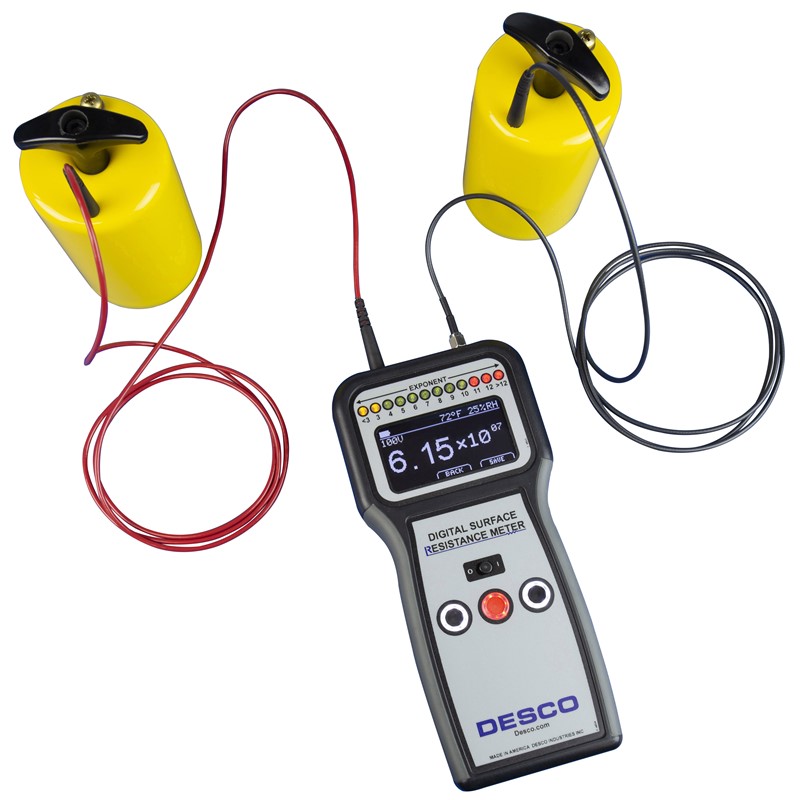

Digital Surface Resistance Meter Kit

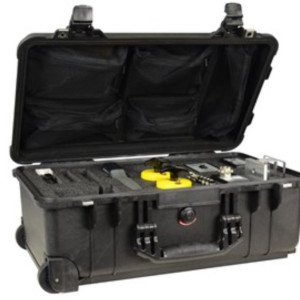

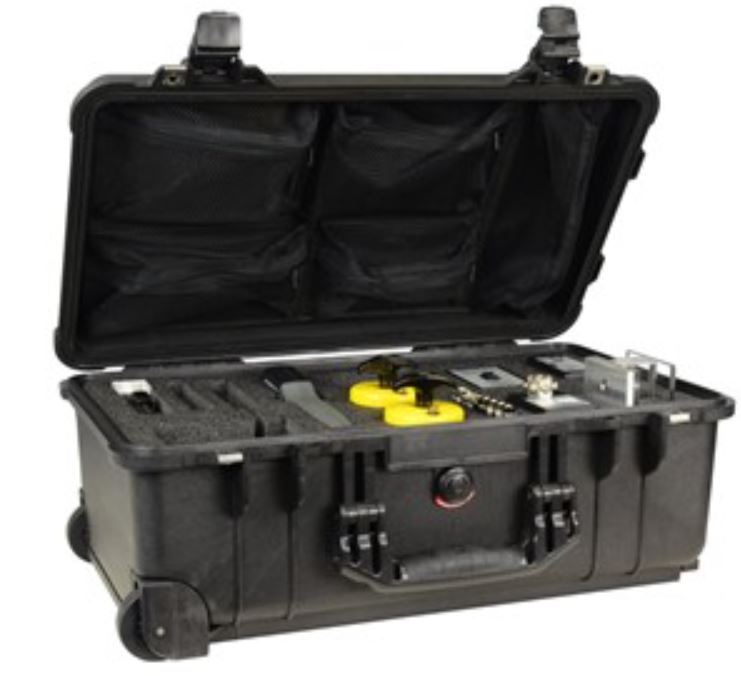

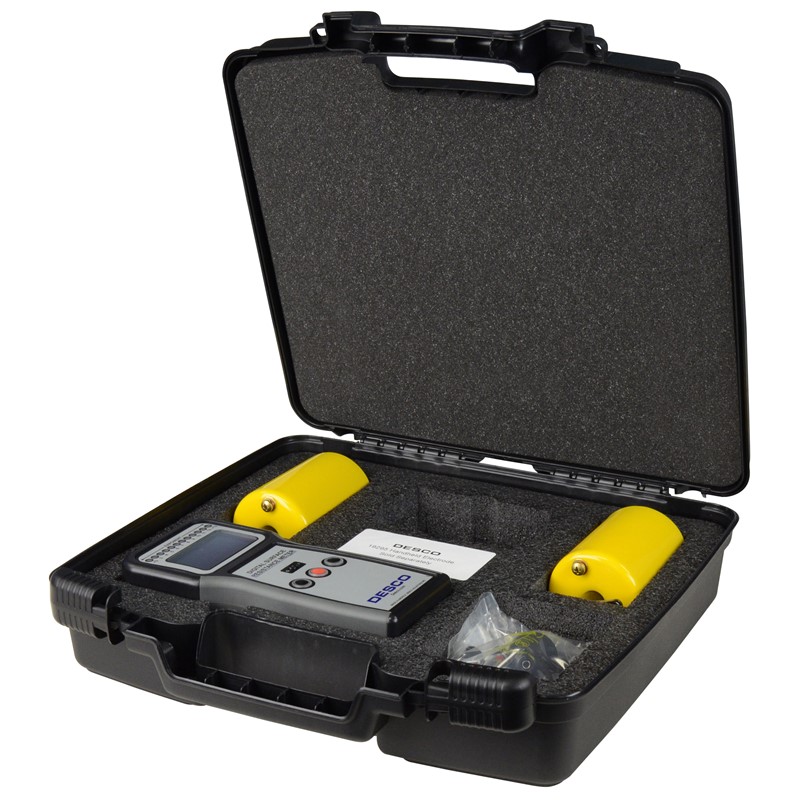

Digital compliance verification surface resistance meter kit
Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with IEC 61340-2-3 and IEC 61340-5-1
large OLED display
Displays resistance mantissa and exponent, temperature, relative humidity and test voltage
internal memory
Stores and recalls up to 100 measurements. Captures resistance, temperature, humidity and test voltage
Measurement stability modes
Sets the 15-second electrification period for test requirements*
Electrode spacers
Spaces the 2.27 kg electrodes to 25 cm and 91 cm for resistance point-to-point (Rtt) measurement requirements of IEC 61340-2-3 and IEC 61340-4-1
Measurement location labels (pack of 25)
Labels and tracks areas and materials measured for surface resistance
Resistance range: <1.0 x 10³ to >1.0 x 10¹² Ohms
Determines if a surface is conductive, dissipative or insulative for ESD control applications in electronics manufacturing or handling environments
Under load test voltages (10 V or 100 V ±5 %)
Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification
