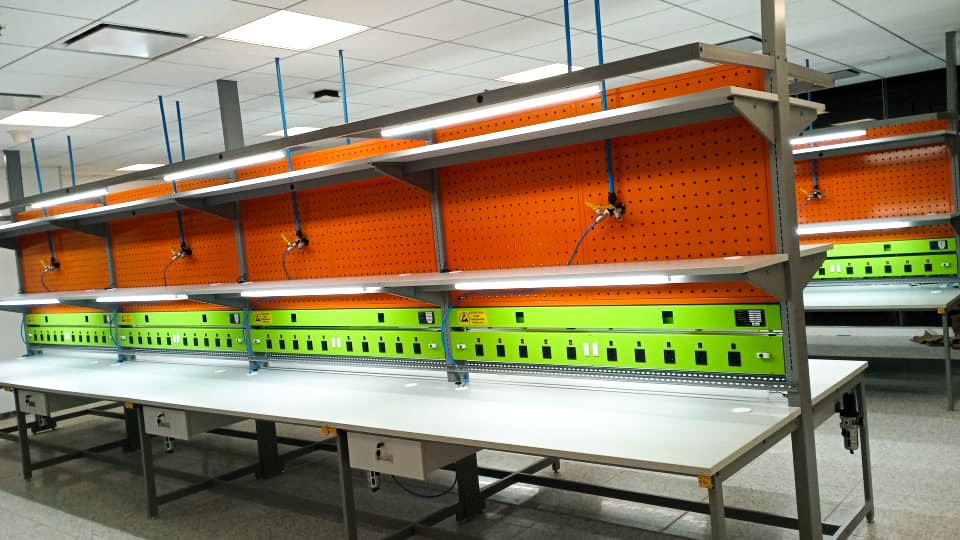

ESD Tables / ESD Workstations(6)
ESD workstations and ESD tables, meticulously designed to meet the demanding requirements of electrostatic-sensitive environments. Our ESD Lab Tables provide a secure and controlled workspace for tasks that require protection against electrostatic discharge. Crafted with precision, these ESD Lab Benches feature ESD-safe surfaces and materials, ensuring the utmost protection for sensitive equipment and components.
An ESD (Electrostatic Discharge) workstation is a specialized work surface designed to protect sensitive electronic components from damage caused by static electricity. It typically includes an ESD Table with a static dissipative surface that prevents the build-up of static charges, grounding points to connect wrist straps or other grounding devices, and often an ESD mat that further aids in safely dissipating static electricity. ESD workstations are essential in electronics manufacturing, repair, and testing environments where even small electrostatic discharges can damage or destroy delicate components.
Static protective worksurfaces with a resistance to ground of 106 to 109 provide a surface that is at the same electrical potential as other ESD protective items in the workstation. They also provide an electrical path to ground for the controlled dissipation of any static potentials on materials that contact the surface. The worksurface also helps define a specific work area in which ESD sensitive devices may be safely handled. The worksurface is connected to the common point ground.
The key ESD control elements
ESD Workstation comprises a static dissipative worksurface, a means of grounding personnel (usually a wrist strap), a common grounding connection, and appropriate signage and labeling.
Benefits of ESD Tables / Anti static Workstations
An ESD Safe lab table offers below mentioned advantages
- Protect components against electrostatic discharge as per ANSI S20.20 Standards and IEC61340-5-1 standards
- Provision to mount all production / lab accessories
- Ergonomically comfortable for operator
- Compliance to cleanroom conditions
- Electrical and network connections can be included
- Personnel grounding
Cir-Q-Tech Tako Technologies Pvt. Ltd. is a premier manufacturer of ESD tables in India, offering a wide range of products tailored to meet diverse industrial needs. Our ESD tables feature frames made of Mild Steel (MS), Aluminum, and Stainless Steel (SS), ensuring durability and reliability. We provide both standard and customized tables to suit specific customer requirements. Our ESD Safe tables are TUV certified for quality assurance. Our ESD Work benches are tested and certified by an iNarte, USA, certified ESD Engineer. Choose Cir-Q-Tech for top-notch ESD solutions that safeguard your valuable electronic components and enhance operational efficiency.
ESD SAFE FEATURES
All our Tables incorporate the ESD Safe features as per International Specifications meeting requirements of ANSI/ESD S20.20 Standards and IEC/EN 61340 standards among others. Our Tables are TUV Certified.
- ESD Safe Laminated Table top with permanent properties
- Provision for connecting wrist straps and personnel grounding
- Grounding connections
- ESD symbol on table
- ESD Safe powder coating for high end applications.
- Certificate of conformance to ESD Standards measured in presence of customer using imported instrumentation with traceability of calibration
- Ability to customize specific parts to ESD Standards
- Many accessories such ESD safe bins, tool holders, ESD Safe Pedestals, footrest, Etc.
- In-house Test lab
- Certification made under supervision of Mr. Raj Kiran an iNARTE, USA Certified ESD Engineer.
- Ionizers from Simco Ion, USA can be added to the table for enhanced ESD safety
Features and Benefits
- Modular Design
- Variety of Accessories available
- Strong and robust construction
- Can be designed for any weight loads on the table tops and shelves
- Adding new accessories is very simple and convenient
- Attractive appearance
- Incorporates Special ESD Laminates available in many different colours as per our shade card
- Cost effective
- Can be dissembled and assembled (except the welded type tables)
Inputs Required to Design or Customize ESD Workbenches
- Choice of Frame Mild Steel, Aluminium Wide Frame, Aluminium Square Frame or Pipe Based Modular Systems.
- The Load on the workstations that is likely during operation is to be specified.
- Dimensions of the table Length x Width x Height. Height of the tabletop from floor to be specified.
- No of shelves required and whether the shelves should be below or above the tabletop. The height of the shelves with respect to the tabletop to be specified.
- Dimensions of the Shelves and Tabletop
- Details of the Power Panel – No and Type of switches, sockets, MCB, Indicator lamp, Current Rating, Length of connecting cable, and any special requirements. Standard panel will have a connecting wire with plug to connect to external power.
- No of Network Bar/Bus Bar required. The ethernet connections have to be made by the customer. Cutouts can be provided as per the sockets required.
- List out the accessories required as per the next page
- If there are any special requirements, please contact the factory.
- Drawing to be made depending on customer requirements, and approval taken prior to offering the price quote.
How are Cir-Q-Tech make ESD Lab tables superior?
- Own factory to manufacture ESD tables
- Wide range of products
- Customized items as per the requirement of the production process
- Frames made of Mild Steel (MS), Aluminum, and Stainless Steel (SS)
- Our ESD Safe tables are TUV certified for safety and performance
- ESD compliance tested and certification provided by iNARTE Certified ESD Engineer
Explore our collection today and elevate your workspace with top-quality ESD solutions which prioritize safety and productivity.
